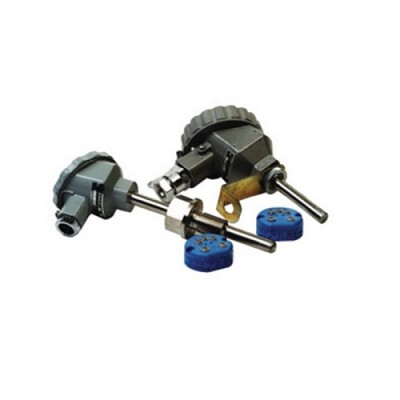

Insert Temperature Transmitter,Electrical Equipment & Supplies
Description
CJBT-I utlizes specific temperature module,can modify kinds of thermocouple,hot resistance, then outputs standard analog signals.It is high accuracy,strong anti-interference,anti-explosion,heat resistance,anti-knock.
Features:
Wide measure range
All material is Stainless steel
Various Pressure port type
Protection Grade: IP65
Application:
Measure temperature of gas or liquid which is compatible to 316L stainless steel
Used in field of petroleum, chemical industry, metallurgy, Electricity, hydrology etc.
Performance Parameters:
Measure Range: -55-1200℃
Accuracy: ±0.5%typical ±1.0%MAX
Long term stability: ±1.0%F.S/year
Working temperature: -20℃-80℃
Power Supply: 15-30VDC
Output signals: 4-20mA 1-5VDC
Pressure Port: M27×2 or customize
Shell Material: Stainless Steel 1Cr18Ni9Ti
Wire: Polythene
Protection Grade: IP65
Reminders when choose models
1. Pay attention to media which is measured is compatible with part of product
2. Anti-exposion products don't have LCD or LED dial
3. Order temperature transmitter with LCD or LED dial, the power voltage shouldn't be less than 20VDC
4. In order to keep stable performance, we suggest user to install lightning protection device
5. If there is strong vibration, strong electromagnetic, RFI, please state before order and indicate in order.
Order Guide
|
CJBT |
Temperature Transmitter |
||||||
|
|
Code |
Temperature sensing element |
|||||
|
P |
Thermal resistance P Pt100 |
||||||
|
K |
Thermocouple K(S,T,B,E,R,J optional) |
||||||
|
|
Code |
Inserted depth(mm) |
|||||
|
L1 |
Depth (thread length included ) |
||||||
|
|
Code |
Mounting method |
|||||
|
M |
M27×2 thread length 32mm |
||||||
|
G |
G1/2 thread length 20mm |
||||||
|
C |
M20×1.5 thread length 18mm |
||||||
|
T |
Customized |
||||||
|
|
Code |
Probe diameter(mm) |
|||||
|
X |
φ6φ8φ10φ12 |
||||||
|
|
Code |
Electric connection |
|||||
|
L |
Customized length( null-default:200mm) |
||||||
|
H |
Hirschman plug |
||||||
|
F |
Water-proof connection box |
||||||
|
E |
2088 housing with LED |
||||||
|
|
Code |
Output signal |
|||||
|
S1 |
420mADC |
||||||
|
S2 |
05VDC |
||||||
|
S3 |
010VDC |
||||||
|
S4 |
0.54.5VDC |
||||||
|
SN |
Customized |
||||||
|
CJBT- -P -150 -M -φ10 -L -S1 Whole Specs. |
|||||||
