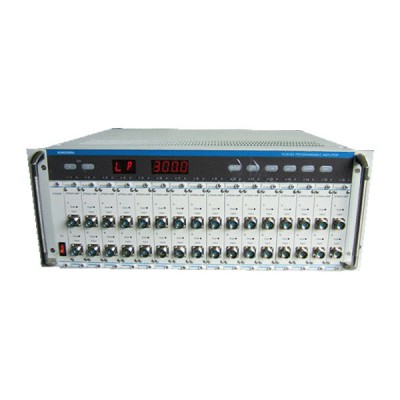

Dynamic Strain Amplifier

Model

CJ3818D

Channels

4,8,16,32,64

Bridge Resistance

60-10000Ω

Input Range

0 - ±50000με

Output Range

±5VP/5mA

Noise

≤3μV

Stability

Zero

±0.1μV/℃;     ±0.1%/F.S/2h

Sensitivity

±0.01%/F.S//℃;  ±0.1%/F.S/2h

Bridge Voltage

1,2,3,4,10VDC/50mA

Gain

Steps

100,300, 1000,3000

Accuracy

≤±0.5%

Nonlinearity

0.1% FS

Balance (Resistance: Within 1%)

Auto: ±5000με

Measurement Mode

DC,AC,PK+,PK-

Frequency Range

DC-300kHz

Low-Pass Filter(-3dB,-12dB/OCT)

30,100,300,1k,3k,10k,100k,300kHz

Operating Environment

Operating Temperature: -10 to 50℃; Humidity: 85% R.H.

Power Supply

AC220V50Hz

Dimensions(mm)

499W ×177H×377D

Weight

6.5kG

Input/Ouput Type

Input:7-Pin Socket

Output: LBNC
